ตัวแทนจำหน่ายวาล์ว "วายสแตนเนอร์" แบรนด์ อาริตะ (Arita) ในประเทศไทย

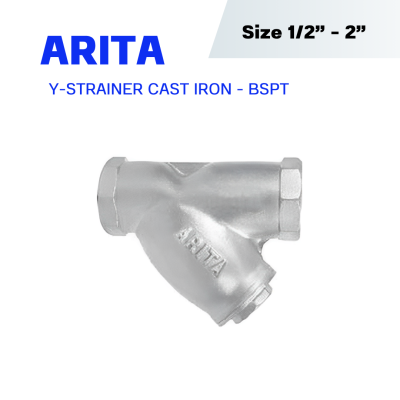

ARITA Cast Iron Y Strainer รุ่น IYS-S200 ถูกออกแบบมาเพื่อใช้ในระบบท่ออุตสาหกรรมที่ต้องการกรองเศษวัสดุหรือสิ่งสกปรกจากของเหลวหรือไอน้ำที่ไหลผ่าน โดยใช้ตะแกรงสเตนเลส (SS304) เป็นตัวดักจับสิ่งแปลกปลอม ป้องกันความเสียหายที่อาจเกิดกับวาล์ว ปั๊ม หรืออุปกรณ์อื่นๆ ในระบบ มีขนาดให้เลือกตั้งแต่ 1/2", 3/4", 1", 1.1/4", 1.1/2", 2" นิ้ว ชนิดเกลียว bspt
โครงสร้างตัวกรองทำจากเหล็กหล่อคุณภาพสูง (FC200) พร้อมฝาปิดที่สามารถเปิดออกได้ง่าย เพื่ออำนวยความสะดวกในการบำรุงรักษา และยังสามารถติดตั้งได้ทั้งในแนวนอนและแนวดิ่ง (ไหลลงด้านล่าง) โดยต้องติดตั้งก่อนอุปกรณ์หลักเสมอเพื่อประสิทธิภาพสูงสุด
คุณสมบัติเด่น:
- เกลียวมาตรฐาน BSPT
- ใช้กับของเหลวทั่วไป น้ำ น้ำมันเบา และไอน้ำ
- ซีลกันรั่วด้วยปะเก็นชนิดไม่ใช้แร่ใยหิน (Non-asbestos)
- รองรับแรงดันทำงานสูงสุดถึง 200 PSI และอุณหภูมิไม่เกิน 200°C
- ผ่านการทดสอบความดันตามมาตรฐานอุตสาหกรรม
การใช้งานที่เหมาะสม:
- เหมาะสำหรับระบบน้ำ ไอน้ำ และน้ำมันในโรงงานอุตสาหกรรมทั่วไป
- เป็นอุปกรณ์เสริมที่ช่วยยืดอายุการใช้งานของระบบท่อและอุปกรณ์ปลายทาง

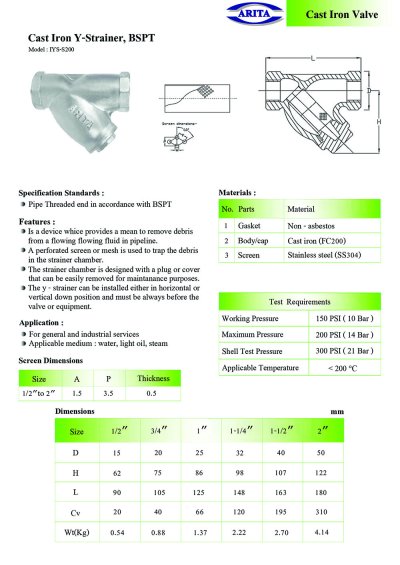

Specification Standards:
- Pipe Threaded end in accordance with BSPT
Features:
- Is a device whice provides a mean to remove debris from a flowing flowing fluid in pipeline.
- A perforated screen or mesh is used to trap the debris in the strainer chamber.
- The strainer chamber is designed with a plug or cover that can be easily removed for maintanance purposes.
- The y-strainer can be installed either in horizontal or vertical down position and must be always before the valve or equipment.
Application :
- For general and industrial services
- Applicable medium: water, light oil, steam
Parts /Materials /Test Requirements
- Gasket : Non - asbestos
- Body/cap : Cast iron (FC200)
- Screen : Stainless steel (SS304)
- Working Pressure : 150 PSI (10 Bar)
- Maximum Pressure : 200 PSI ( 14 Bar)
- Shell Test Pressure : 300 PSI (21 Bar)
- Applicable Temperature : < 200 °C
